特徴

• Grove compatible
• Low cost, high performance , high reliability
• FSK modulation, 2-way half ?duplex communication, strong anti-interfere
• 433/470/868/915MHz ISM band,globally license free
• Maximal output power100mW（20dBm）,output power adjustable between 1-20dBm
• Sensitivity -117dBm
• Supply current for Tx 100mA@20dBm, 40mA@14dBm
• Supply current for Rx 25mA
• Low current sleep mode 1uA
• Accord FCC,ETSI standard

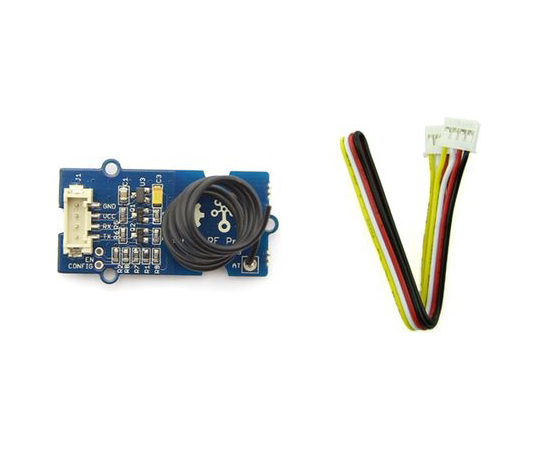

• Serial RF Pro Twig is a low cost、high performance transparent FSK transceiver with operating at 433/470/868/915 MHz. It features small size、high output power、high sensitivity、long transmission distance and high communication data rate with auto set up for communication change and data receiving and transmission control. There is UART interface、it is easy to realize the wireless data transmission with only providing the UART data. It is flexible for the users to set the UART baud rate、frequency、output power、data rate、frequency deviation、receiving bandwidth etc parameters. It is your ideal choice for designing wireless data transmission products which can be widely used on wireless data transmission field.
• To get the best performance、please use it at 433MHZ（Default）.
• 【Application Ideas】
• - Remote control、remote measurement system
• - Wireless meter
• - Access control
• - Identification system
• - Data collection
• - IT household appliance
• - Intelligence household appliance
• - Baby monitoring system
