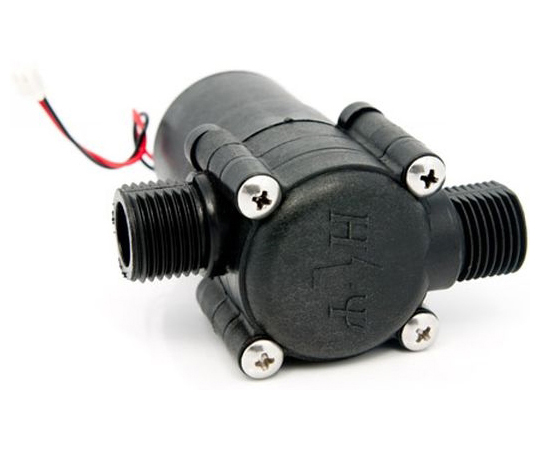

This G1/2 micro hydro generator provides you clean and renewable electricity. With the help of the regulator circuit inside、the output of this generator is stable at 3.6V. And the capacity of battery is improved from 300mAh to 700mAh compared to the old version.
Time to replace the Li-po batteries in your waterside projects with the green and more accessible hydro power.
【Specifications】
Working Pressure：＜ 2KGF
Pressure Drop：0.4 Bar（3.0 L / Min）
Peak Current：1.4 A
Stand-by Current：Max. 1.4A
Voltage Output：3.6VDC --- 700mAh
Power Output：125mW（4LPM）
Battery Capacity：300mAh
Max. Flow：20 L / Min（2KGF）
Water-resistance：IP4
High limited voltage：4.3VDC
Dimensions：L 84.5 mm - W 64.5 mm - H 81 mm
Wire Length：84 mm
Jack Type：JWT C2521 Terminal Plug
Connect Thread Gauge：G 1/2"
Weight：165 ± 5g
Burst Pressure：20KGF
Normal Operation Temp. 4 ℃～80 ℃
Max. Intermittent Operating Temp. 110 ℃ max. 30 min
