特徴

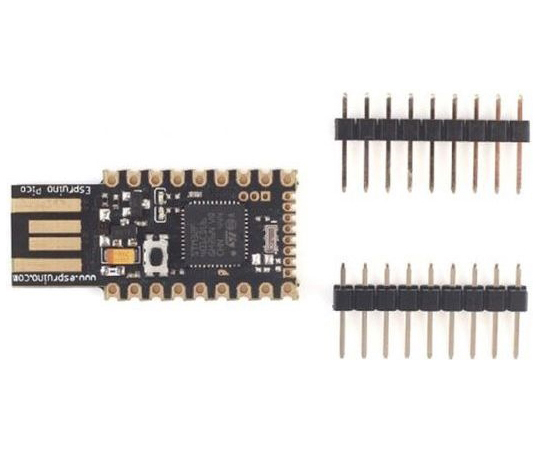

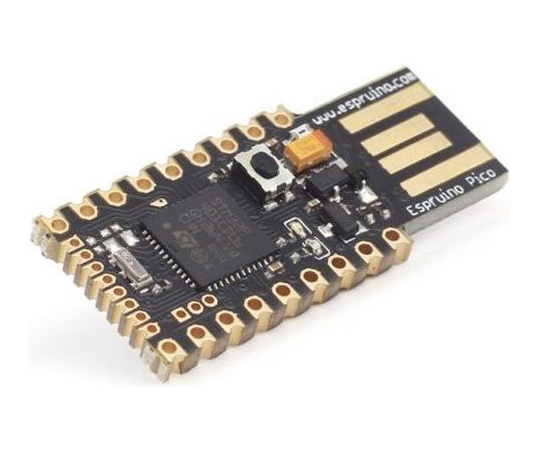

• Espruino Pico is a tiny microcontroller board that runs JavaScript（it doesn't need to be plugged into a computer）、making it easier than ever to control electronics in the real world. You can program it with nothing but a serial terminal program、but there's also an IDE that runs in the Chrome Web browser. It's got a syntax highlighted editor as well as a graphical programming language.
• Once you have uploaded code、you can inspect and change variables（including functions）while your program is running. If you make something with an Espruino Pico and need to change it a year later、your original code is still there waiting for you！
• This is unpinned version、if you want pre-soldered pins、please visit Espruino Pico（pinned）.
• Features：33mm×15mm（1.3×0.6 inch）
• 22 GPIO pins：9 Analogs inputs、21 PWM、2 Serial、3 SPI、3 I2C
• All GPIO is 5 volt tolerant（Arduino compatible）
• 2 rows of 9 0.1" pins、with a third 0.05" row of 8 pins on the end
• On-board USB Type A connector
• Two on-board LEDs and one button.
• STM32F401CDU6 CPU - ARM Cortex M4、384kb flash、96kb RAM
• On-board 3.3v 250mA voltage regulator、accepts voltages from 3.5v to 16v
• Current draw in sleep：＜ 0.05mA - over 2.5 years on a 2500mAh battery
• On-board FET can be used to drive high-current outputs
• Part List：Espruino Pico（unpinned）x 1
