特徴

• Special noticed with only 3.3v supported for motor encoder connectors and Grove connectors
• Description

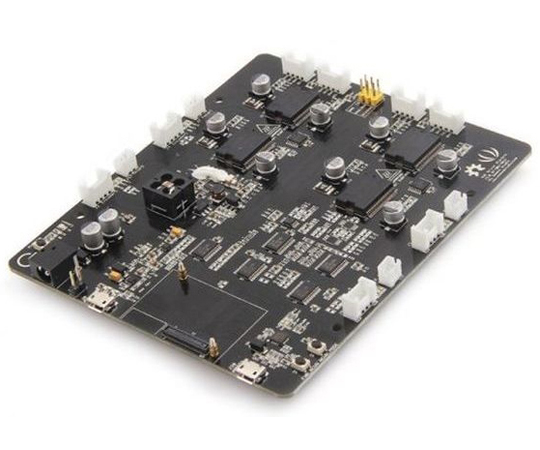

• The 4WD Driver Platform V1.0 is a multi-purpose、all-in-one development platform based on Intel Edison. It is specially designed for robotics applications. Fully compatible with Arduino open source platform and Linux、supports multiple programming models：Node.js、Python、C/C++、ROS and OpenCV. In addition、users are able to extend this platform with hundreds of existing Seeed Grove modules such as sensors、LEDs、servos and motors easily with 4WD Driver Platform V1.0.
• With the integrated 4 way DC motor driver and wireless capabilities、the 4WD Driver Platform V1.0 is a perfect companion for you to enter into the robot world.
• Features
• Support USB to device Uart bridge
• Support OTG
• Support SPI program port
• Support Grove Interface：1x Uart; 3x I2C
• Support 4 way encoder motor drive（Peak Current：3A）
• Support overcurrent、overloading and short circuit protection function
• Specfication
• Motor Driver Constant Current：4×2A
• Standby Current：＜ 150mA
• Output Voltage：5V/4V/3.3V/1.8V
• Input Voltage（limits）：6-16V
• Size：130mm×110mm
