特徴

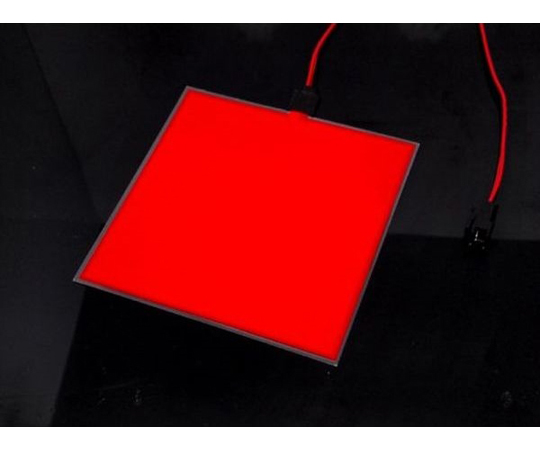

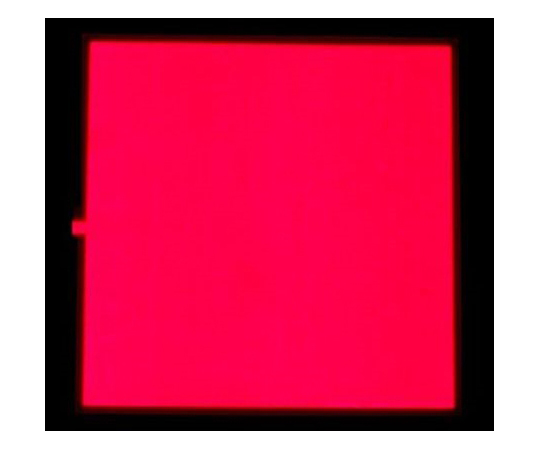

• A big sister to our EL tape、the EL panel is a similar item that comes in a 10 cm square format. You'll notice when working with it that it shares some of the same features as the EL tape：flexibility、portability、and a beautiful soft glow. It can be used as backlight for an illuminated device、or a platform for paper-cutting artwork. Post it on a flat surface or wrap it around a curved surface. Use it in a project as a lighting element or attach it to a shirt. The options are amazing.
• You need an inverter to drive the EL light、to control it、please pick up an EL Shield.
• Features
• No heat loss
• Great backlight material
• High efficiency（97％）
• Does not emit UV light
• Soft light that is not harsh on the eyes
• Waterproof、except the connecter
• The higher voltage EL USB inverter is recommended because it produces a stronger light
• Able to be cut into other shape
• Specifications
• Dimension：10 cm×10 cm
• Thickness：0.4 mm - 1.0 mm
• Operating Voltage：100 V～ 220 V Optimum：120 V
• Operating Frequency：50 Hz～ 5000 Hz Optimum：1500 Hz - 2000 Hz
• Static Capacitance：6 nf/m（20 ° C、the RH ＜80％）
• Brightness：30 cd/m2 ～ 126 cd/m2（at 120 V、200 Hz ～ 2000 Hz）
• Power：108 mw m ～ 1032 mw/m（at 120 V、200 Hz ～ 2000 Hz）
• Life：approximately 8000 hours
• Operating Temperature/Humidity：-10 ℃ ～ + 60 ℃/RH ＜ 90％
• Storage Temperature/Humidity：-10 ℃ ～ + 60 ℃/RH ＜ 65％
