67-0461-76 [取扱停止]Netduino Go 102990032

[Seeed Studio]

※お見積書はカートで印刷できます

特徴

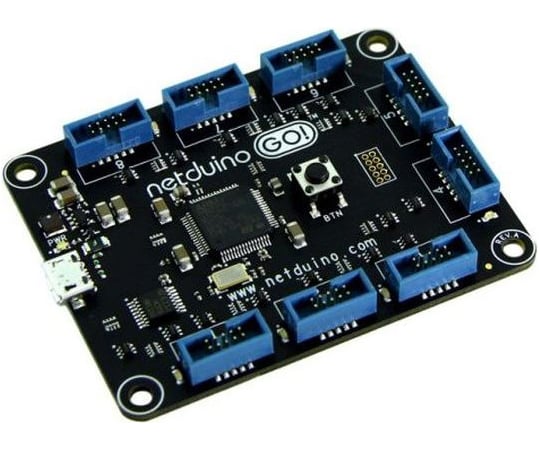

  • Netduino Go is a plug-and-play Netduino with support for more GPIOS、serial ports、analog inputs、and PWMs. Netduino Go has four times the speed(168MHz)、six times the code space(384KB)、and twice the available RAM(100KB+)of Netduino Plus.
  • Some of you aren't yet comfortable picking up a soldering iron、or you don't want to spend your time calculating resistor band colors. With Netduino Go、we've virtualized all the peripherals. All you have to do is pick what you need and plug it in. Besides、each module has a small microchip which works together with the mainboard、easy to use.
  • Features
  • 8 gobus ports、compatible with gobus modules
  • STMicro 32-bit microcontroller
  • Speed:168MHz、Cortex-M4
  • Code Storage:384 KB
  • RAM:100+ KB
  • Specifications
  • Power led:white
  • Gobus port leds:8 blue
  • Input:micro USB powered
  • Output:5VDC and 3.3VDC switched
  • Max current:300mA @ 5.0VDC(up to 500mA @ 3.3VDC)
  • Operating Temperature:0 - 70 ℃(32 - 158 °F)
  • RoHS compliant

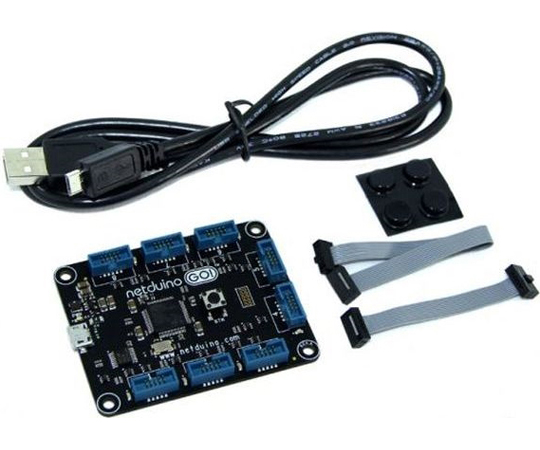

  • Parts list
  • Netduino go
  • Two gobus cables:one 5cm、one 10cm
  • Four sticky feet

仕様

  • RoHS:2016/05/12時点
アズワン品番
67-0461-76
型番
102990032
入り数
1個
標準価格
11,500円(税抜)
WEB価格
取扱停止
