特徴

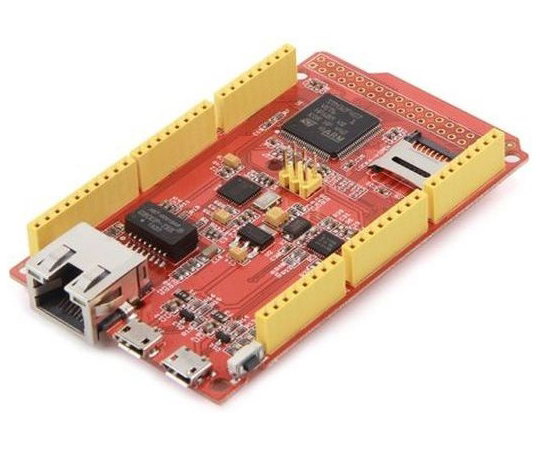

• The Arch Max v1.1 is a mbed enabled development board specially for rapid prototyping. It's based on an STM32F407VET6 microcontroller with an ARM Cortex-M4F core running at 168MHz. It provides serial wire debug]（SWD）debug、drag-and-drop programming and USB serial communication. It provides a complete and straightforward development document for your projects.
• Features
• mbed enabled
• Online development tools（include IDE）
• Complete and straightforward C/C++ SDK
• Massive examples and tutorials
• High-performance STM32F407VET6
• ARM Cortex-M4 MCU with FPU of 168MHz
• 512 KB Flash memory、192 KB RAM
• On-board programming and debug
• Drag-and-drop programming
• USB serial communication
• SWD debug with GDB+ pyOCD/OpenOCD、Keil or IAR
• Arduino form factor、compatible with lots of shields
• Built-in Ethernet port、USB and SD card slot for Internet connectivity and data exchange
• Parameter
• Work Voltage：5V
• Microcontroller：STM32F407VET6
• Flash Memory：512kB
• RAM：192kB
• UART：4
• I2C：3
• SPI：3
• CAN：2
• SDIO：1
• Camera interface：1
• Eth：1
• ADC Channels：8
• I/O pins：40
• Digital I/O Max Input Voltage：5.0V
• Diameter：90mm×44mm
