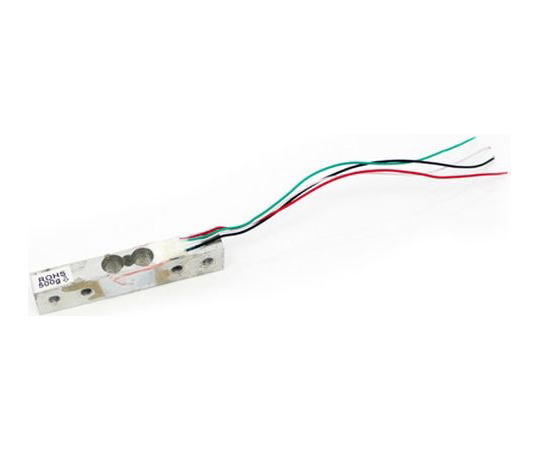

67-0477-26　Weight Sensor（Load Cell）0-500g　314990000

特徴

• Applicable to electronic scale、price computering scale、electronic platform scale、digital scale; parcel post scale、electronic balance and all varieties of commercial scales by single load cell.
• 【Specifications】
• - Capacity g 500g
• - Output sensitivity mv/v 0.5±0.1
• - Nonlinearity ％.F.S 0.05
• - Hysteresis ％F.S 0.05
• - Repeatability ％F.S 0.05
• - Creep（30min）％.F.S 0.05
• - Temperature effect on sensitivity ％F.S/10℃ 0.05
• - Temperature effect on zero ％F.S/10℃ 0.05
• - Zero balance ％F.S ±0.5
• - Input resistance Ω（ohms）1120±10
• - Output resistance Ω（ohms）1000±10
• - Insulation resistance MΩ（ohms）?2000
• - Recommended excitation voltage v 5v
• - Method of connecting wire red：Exc + black：Exc ?
• - green：Sig + white：Sig -
• - Dimension（mm）：45×9×6
