67-0462-29　［取扱停止］DSCope　109990075

特徴

• DSCope is an open source USB-based oscilloscope. It's specially designed for makers with professional specifications and an affordable price. DSCope can be used in academic、experiment、electronics maintenance、engineering task etc.
• DSCope has a pocket size（101mm*74mm*16mm）、which make it to be an ideal replacement to clunky traditional oscilloscope、and help you to save a big area for your working desktop.
• DSCope works with your PC、MAC or even windows tablet through USB interface、which bring a big screen oscilloscope to you without any extra cost.
• Features：Open source
• Unibody aluminum shielded case
• Auto zero skew adjustment
• upgradable Hardware
• Advanced digital trigger
• Deep sample depth
• USB interface、USB powered
• Two channels
• Signal Generator
• Specification：Analog Bandwidth：50MHz
• Max Sample rate：200MHz @ 1 Channel / 100MHz @ 2 Channels
• Max Sample Depth：1M（real-time mode）/ 16M（single mode）
• Coupling：AC / DC / Ground
• Input Characteristics：1MΩ // ～15 pF
• Protected Voltage：±100 V（DC+AC peak）
• Vertical Sensitivity：10mV/div ～ 2V/div（x1）/ 100mV/div ～ 20V/div（x10）
• Horizontal Sensitivity：10nS/div ～ 10S/div

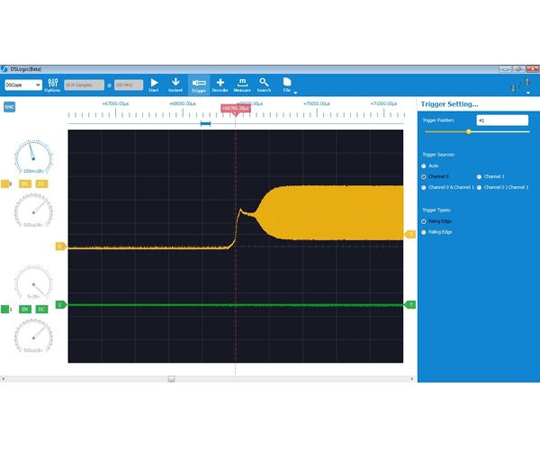

• Triggering Mode：Auto、Single、And、Or
• Rising/Falling Edge trigger
• Vertical precise、horizontal precise measurement
• Waveform functions auto measurement：max、min、frequency、period
• Support OS：windows、Linux、OS X
• Dimension：101×74×16 mm

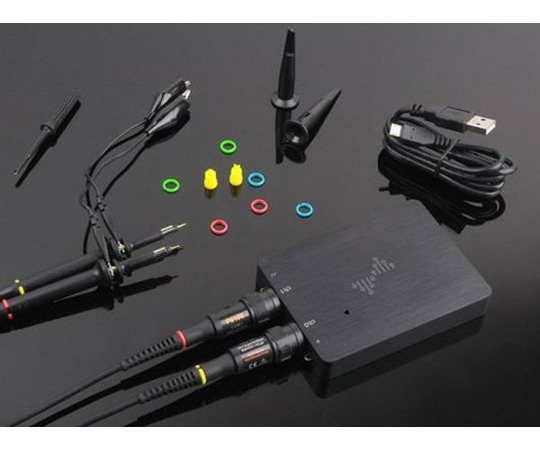

• Part List：DSCope：x 1
• USB cable：x 1
• P6100 probes：x 2
• Adjustment tool：x 1
