The Gameduino 2 turns your Arduino into a hand-held modern gaming system. Touch control、a 3-axis accelerometer、microSD storage for game assets、headphone audio output、and all-new eye-popping graphics on its bright 4.3 inch screen.
The Gameduino 2's FT800 graphics engine is highly capable、and its OpenGL-style command set makes graphics programming easy. It can load JPEGs、supports alpha transparency、and has a full 32-bit color pipeline. There are examples and code on the project page at http://excamera.com/sphinx/gameduino2/.
Audio output is available on the amplified headphone jack、and provides a range of built-in sounds as well as sample playback at up to 48 kHz.
The Gameduino 2 software library is documented extensively in the book、available for free download.
Features
Complete hand-held game module：supply an MCU（Arduino/Rasberry Pi）and power

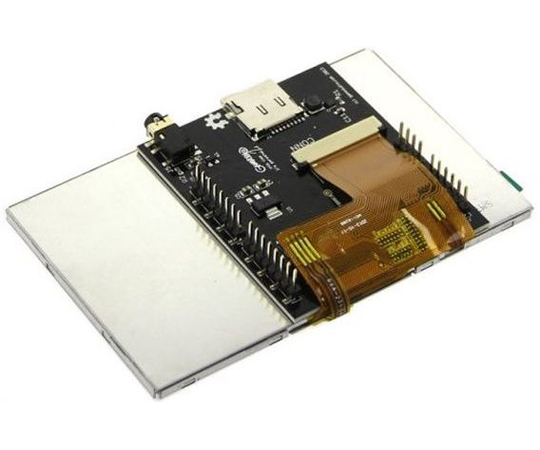

Arduino shield form-factor

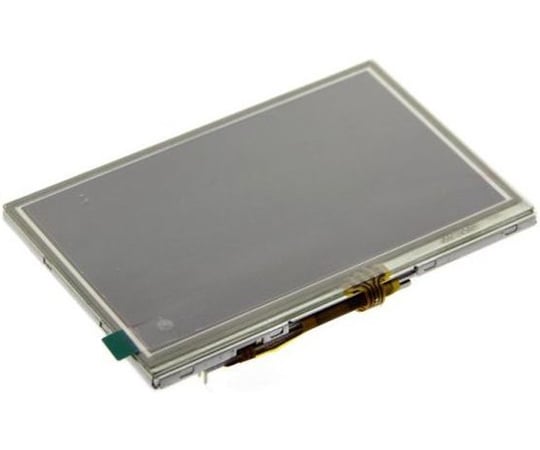

Bright 4.3"（diagonal）480x272 screen、262144 colors
Powered by latest FT800 Embedded Video Engine（EVE）
Resistive touch-screen input
3-axis accelerometer for tilt gaming
microSD storage slot
Amplified audio via headphone socket
Software and book available for download
Important
Note this unit does not include a microSD card.
Specification
Arduino Uno shield form-factor、uses SPI bus on pins 13-11. Voltage levels 3.3-5v
