64-5657-88 ［取扱停止］Crazyflie 2.0 - Spare 7x16 mm coreless DC motor with connector 316030060
[Seeed Studio]
仕様

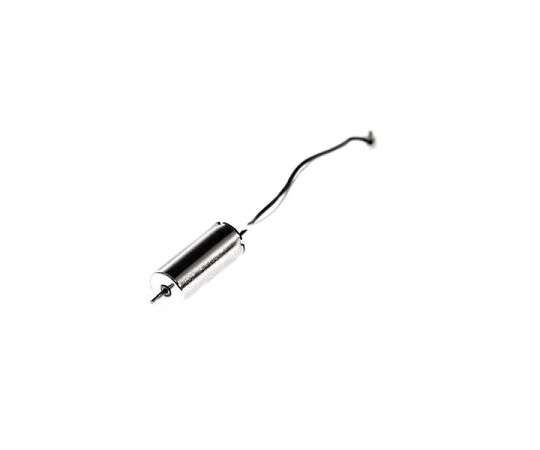

- DESCRIPTIONThis product is a spare part（ 7x16 mm Coreless DC motor ） for the Crazyflie 2.0.TECHNICAL SPECIFICATIONMechanical specification
- Diameter： 7.0 mm
- Length： 16.0 mm
- Shaft length： 3.5 mm
- Shaft diameter： 0.8 mm
- Weight： 2.7 g
- Wire length： 32.0 mmElectrical specification
- Kv： 14 000 rpm/V
- Rated voltage： 4.2 V
- Rated current： 1000mAPART LIST・ 1x 7mm coreless DC motor
