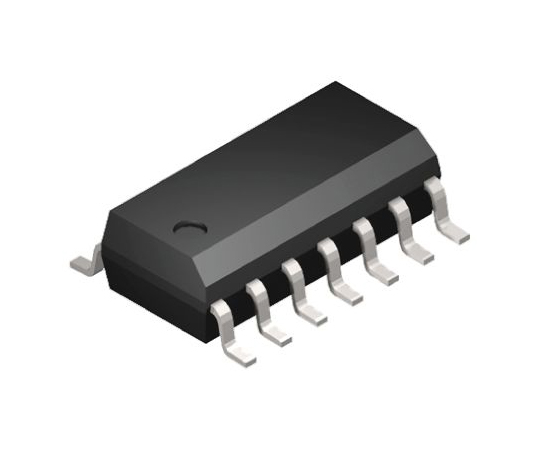

64-1994-88 マイコン PIC16F 8ビット RISC 14-Pin SOIC 1袋(5個入) PIC16F1454-I/SL

[Microchip] Microchip PIC16F1454-I/SL, 8bit PIC Microcontroller, 48MHz, 14 kB Flash, 14-Pin SOIC

※お見積書はカートで印刷できます
よくあるご質問 (FAQ)

特徴

  • PIC16F1454/1455/1459 8-Bit Flash Microcontrollers
  • The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PICR architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices
  • Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications
  • The PIC16F1454/1455/1459 family of microcontrollers is based upon Microchip s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions
  • These MCUs provide up to 12 MIPS, 14 Kbytes program memory with data memory of 1024 bytes RAM
  • On board is a configurable oscillator with ±0.25% accuracy
  • Microcontroller Features
  • 48 MHz Max
  • CPU Speed 49 Instructions 16 Level Hardware Stack USB Technology Extreme Low-Power (XLP) Technology 16 MHz Internal Oscillator Block Selectable Frequency Range 16 MHz to 32 kHz 12 I/O Pins PIC16F1454/1455 18 I/O Pins PIC16F1459 In Circuit Serial Programming (ICSP)
  • Peripherals All Models
  • Two 8-bit Timers One 16-bit Timer Two 10-bit PWM Modules Master Synchronous Serial Port (MSSP) with SPI and I2C Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
  • Peripherals - PIC16F1455/1459 Models Only
  • 5 Channel 10-bit Analogue to Digital Converter (ADC) PIC16F1455 9 Channel 10-bit Analogue to Digital Converter (ADC) PIC16F1459 1 Channel Digital to Analogue Converter (DAC) Two Comparators Internal Voltage Reference Complimentary Waveform Generator (CWG)

仕様

  • 入数:1袋(5個入)
  • ファミリー名:PIC16F
  • パッケージタイプ:SOIC
  • 実装タイプ:表面実装
  • ピン数:14
  • デバイスコア:PIC
  • データバス幅:8bit
  • プログラムメモリサイズ:14 kB
  • 最大周波数:48MHz
  • RAMサイズ:1.024 kB
  • USBチャンネル:1
  • PWMユニット数:1
  • SPIチャンネル数:1
  • 標準動作供給電圧:2.3 → 5.5 V
  • 動作温度 Max: +85 °C
  • RoHS適合状況:適合
  • コード番号:786-3984
  •

アズワン品番 64-1994-88
型番 PIC16F1454-I/SL
入り数 1袋(5個入)
標準価格 1,760円(税抜)
