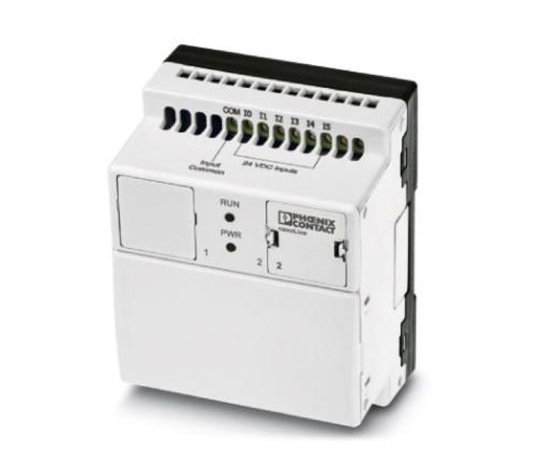

24 Vdc nanoLine base unit with 6 digital input and 4 digital output channels I/O channels can be added and up to 3 E/A expansion modules can be used Optional communication modules facilitate network or serial connectivity Optional operator panel with user interface Programming using nanoNavigator Screw connection Top-hat rail mounting Typical power consumption 92 mA, max
250 mA Typical response time AN 60 μs Output current max
each channel 500 mA, each module 2 A Operating temperature -25 → +60 °C Dimensions （W x H x D） 80.5 x 103.5 x 60 mm
