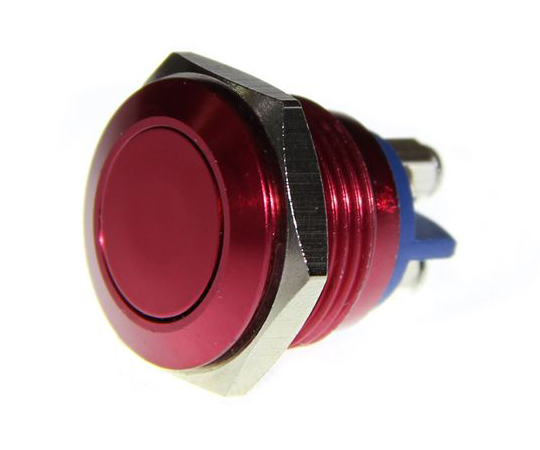

63-3079-04 [取扱停止]16mm Anti-vandal Metal Push Button - Crimson Red 311050002

[Seeed Studio]

※お見積書はカートで印刷できます

仕様

  • DESCRIPTIONThis is a refined metal push button with polished stainless surface and silver as contact material. It takes screw terminals as connectors so that it's easy to be assembled or removed on a project without soldering.FeaturesShiny polished surface
  • Reusable screw terminals
  • Long life, 200,000+ push and bounceSpecificationsDiameter:16mm
  • Degree of protection:IP67
  • Type:Momentary
  • Terminal type:screw terminal
  • Maximum voltage:250V/AC
  • Contact resistance:5MΩ(maximum)
  • Life:200,000 cycles+
  • Operating temperature:-25°C - +65°C
  •

アズワン品番 63-3079-04
JANコード 4547634111048
型番 311050002
入り数 1個
標準価格 720円(税抜)
WEB価格 -
  取扱停止
出荷予定日 -
アズワン在庫 [?] -

この商品は、現在お取扱を停止しております。

商品のバリエーション (サイズ違い・スペック違い・オプション品など)

 商品イメージ アズワン品番 商品名 型番 入り数 標準価格
(税抜)
WEB価格
(税抜)
アズワン在庫[?]
[サプライヤ在庫]
備考
63-3079-03 [取扱停止]16mm Anti-vandal Metal Push Button - Royal Blue  311050001
311050001 1個 720円 -

-

63-3079-04 [取扱停止]16mm Anti-vandal Metal Push Button - Crimson Red  311050002
311050002 1個 720円 -

-

63-3079-05 [取扱停止]16mm Anti-vandal Metal Push Button - Carbon Black  311050005
311050005 1個 720円 -

-
